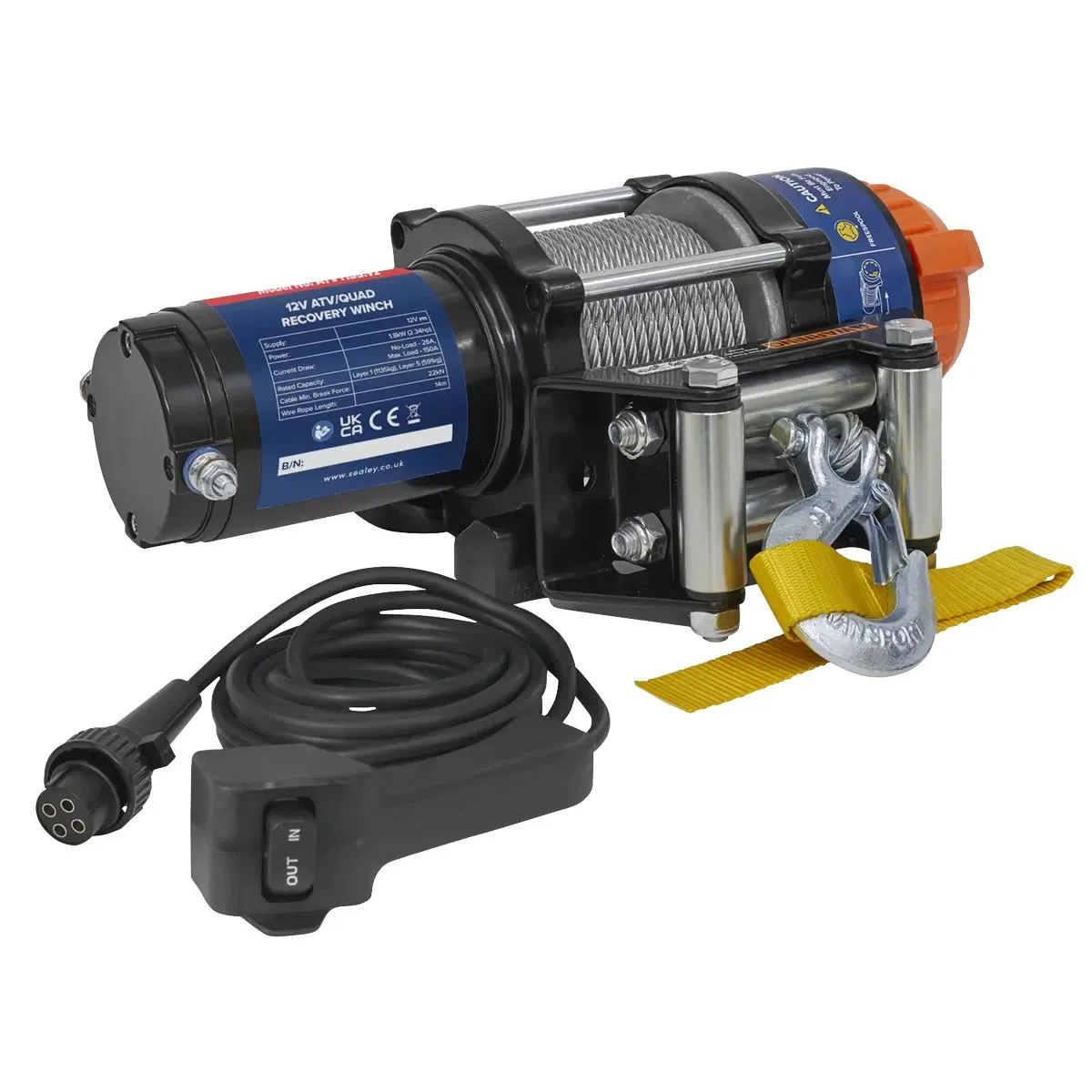

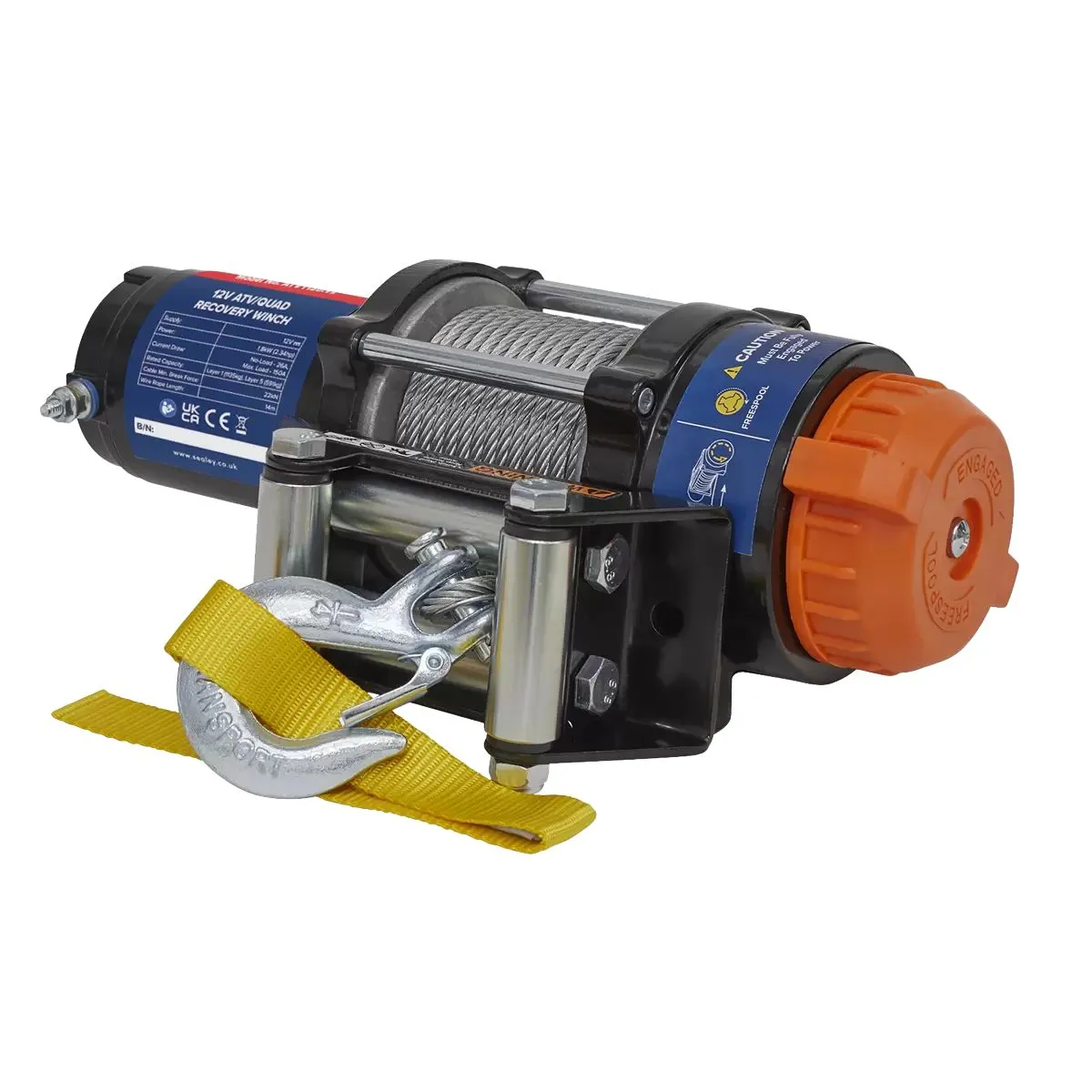

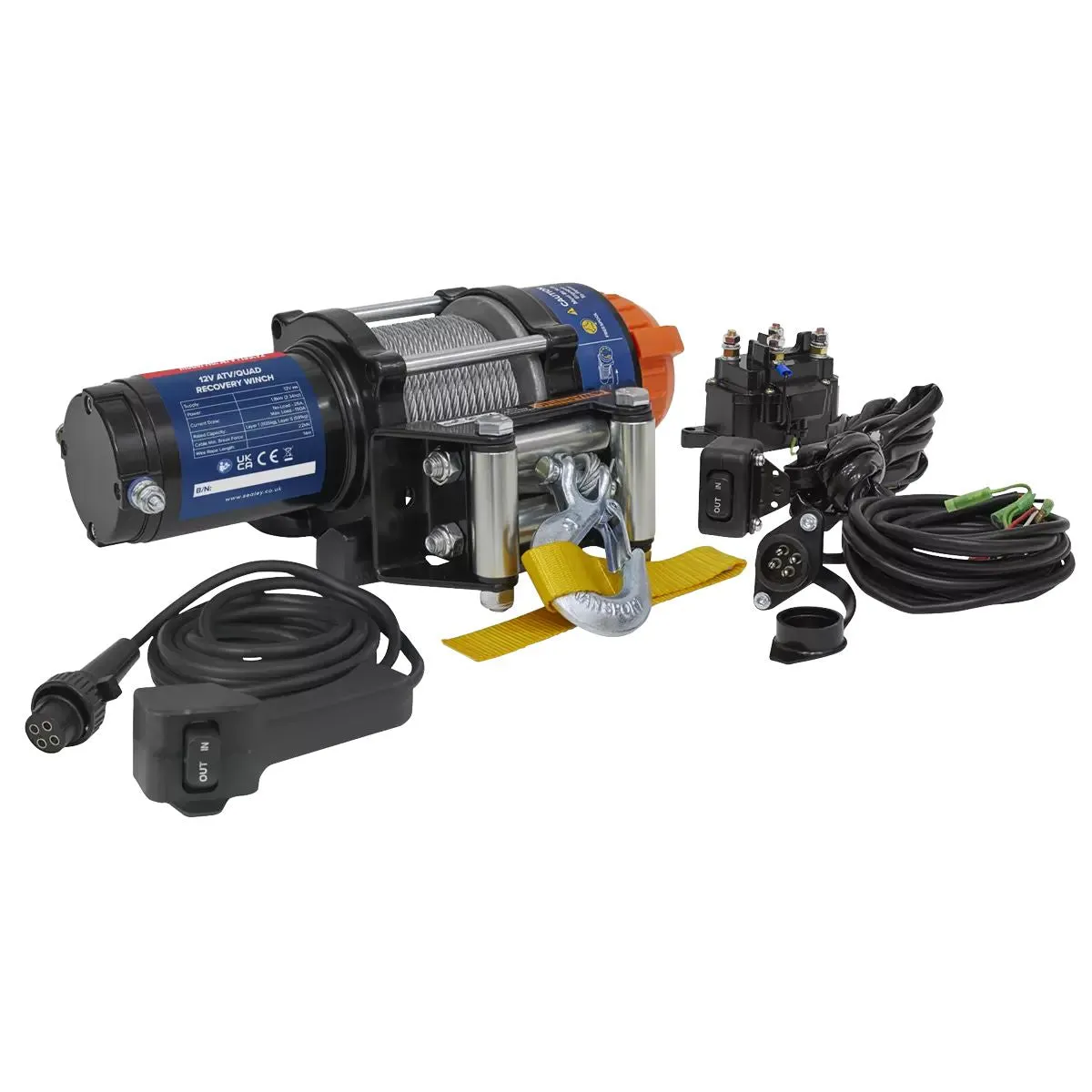

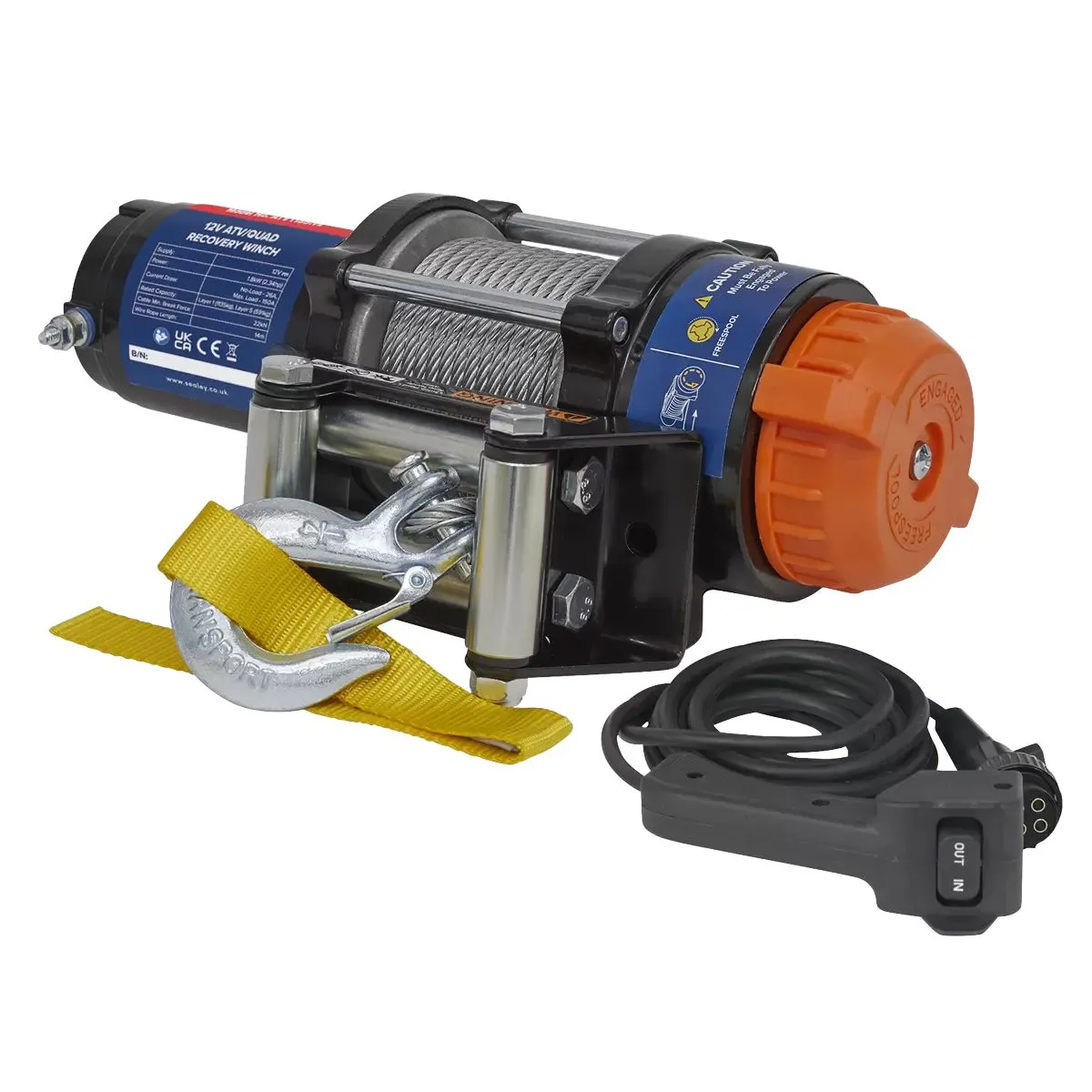

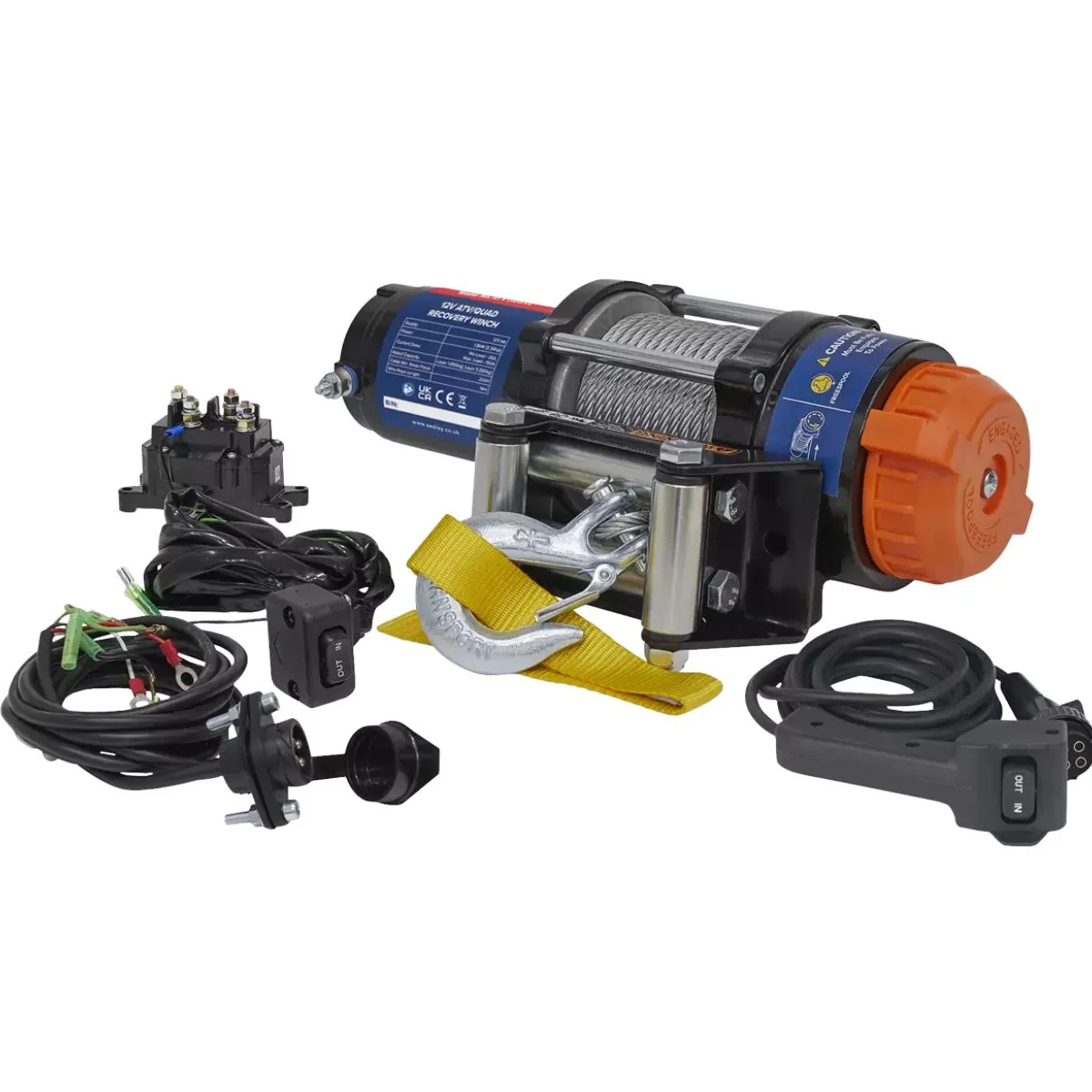

Sealey ATV1135 12V ATV/Quad Recovery Winch 1135kg Line Pull

Features:

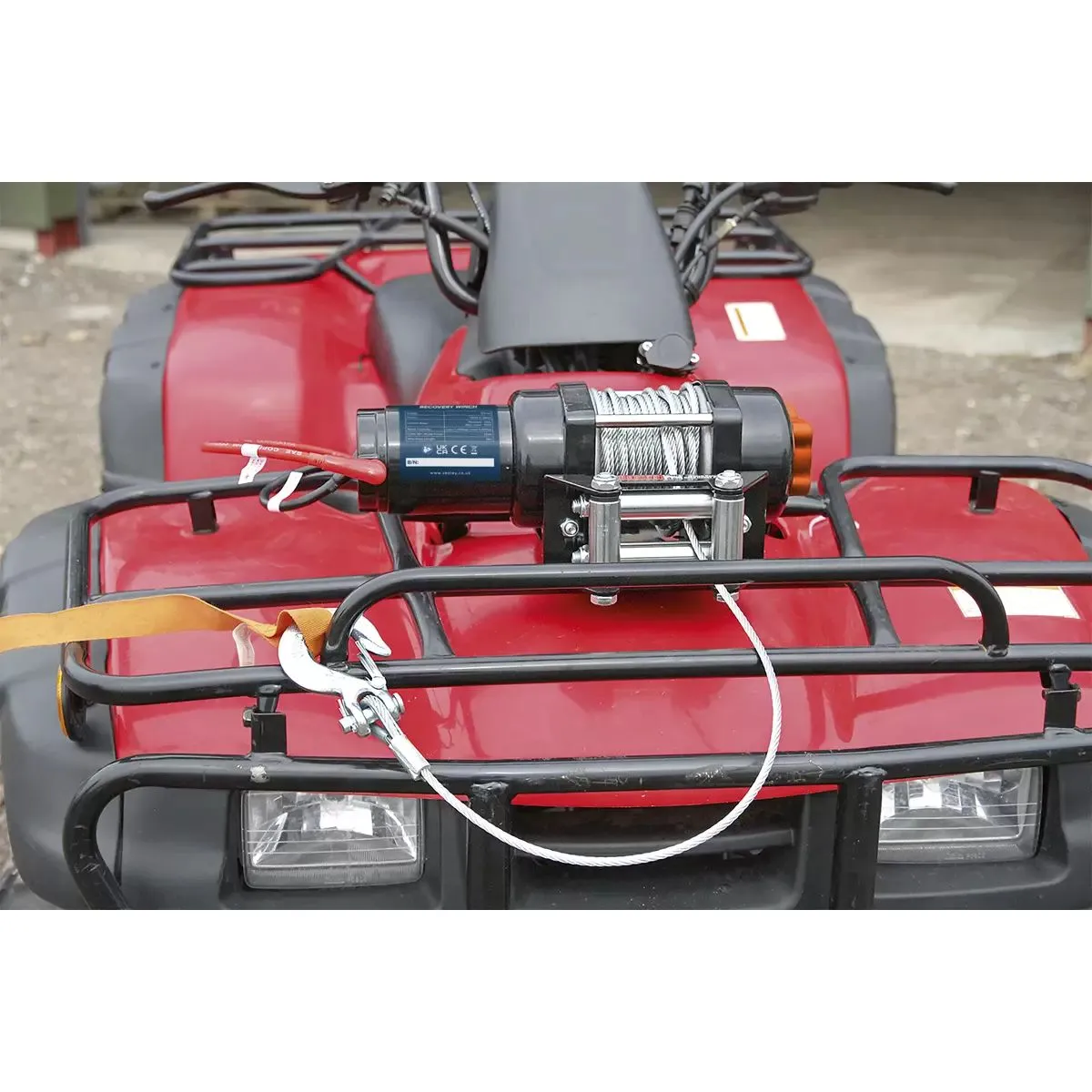

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
Designed and built with the toughest jobs in mind.
High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power.
Heavy-duty all-weather housing.
3-Stage planetary gears.
Patented unique automatic spring brake, reliable in full load operation.
Sliding ring gear clutch
High quality wire rope feeds through 4-way roller fairlead.
IP67 rated motor and gearbox.
Gear Ratio: 180:1.

Specification:

Part No: ATV1135
Barcode: 5054511341560
Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw: No-Load - 26A, Maximum Load - 150A
Gear Ratio: 180:1
Line Pull*: 1135kg(2500lb)
Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power: 1.8kW(2.34hp)
Nett Weight: 11.8kg
Note: Performance quoted at first layer of cable on drum
Supply: 12V
Wire Rope Diameter: 4.8mm
Wire Rope Length: 14m

**images for illustrative purposes only – please refer to description and specification for full details of product**
